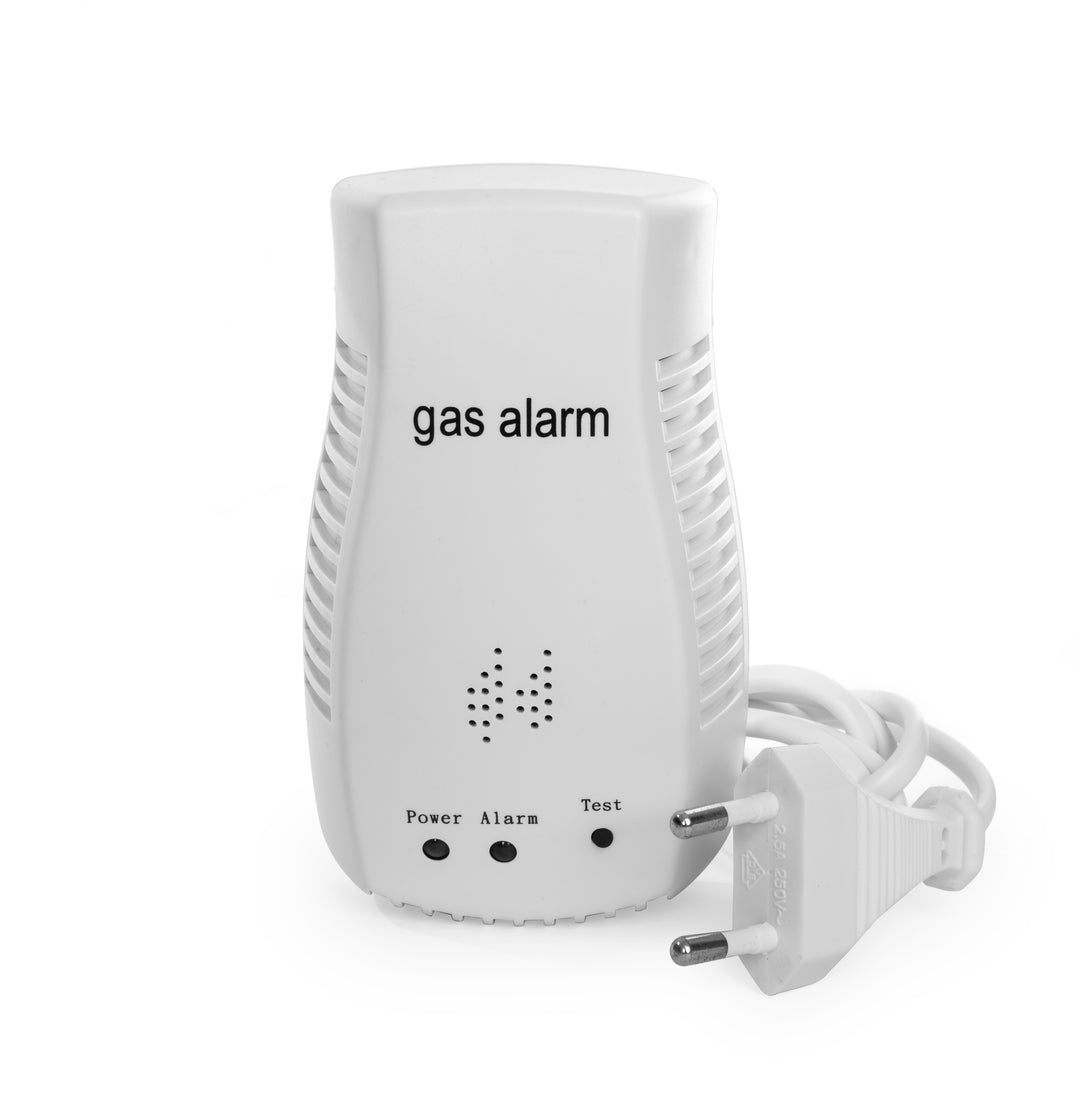

Gas Leak Alarm (Natural Gas & LPG)

Protect your home with this reliable Gas Leak Alarm, designed to detect both Natural Gas (NG) and LPG (Propane/Butane) leaks. When gas is detected, the alarm emits a loud audible warning, giving you time to turn off your gas supply and ventilate the area.

Features

• Suitable for Natural Gas (NG) and LPG
• Loud 85dB audible alarm
• Sensitive gas detection (≤10% LEL)
• Simple wall-mounted installation
• Test/Reset button with 5-minute silence function
• Low power consumption (≤4W)
• Operates on 110-240V AC mains power

Installation

• Mount at least 30cm above floor level
• Install with ventilation slots facing downwards
• Position at least 1.5 metres (5ft) from gas appliances
• Ensure ventilation openings remain unobstructed

If the Alarm Sounds

1. Turn off the gas supply immediately.
2. Open doors and windows to ventilate the area.
3. Do not use electrical switches or naked flames.
4. Contact a qualified gas installer if required.

Specifications

• Power Supply: 110-240V AC, 50/60Hz
• Alarm Volume: ≥85dB (at 1 metre)
• Operating Temperature: -10°C to +50°C
• Humidity: 10-90% RH
• Gas Types: LPG & Natural Gas
• Power Consumption: ≤4W
